What Drilling Rigs Work with Self-Drilling Anchor Bolts?

Time:2025-07-24From:sinorock View:

Self-drilling anchor bolts are innovative rock support systems used in tunneling, slope stabilization, and foundation engineering. These bolts integrate drilling, grouting, and anchoring into a single operation, making them highly efficient for challenging geological conditions. Selecting the right drilling rig is essential for successful SDA bolt installation. This guide explores compatible drilling rigs, their key features, and practical tips to ensure optimal performance in construction projects.

Types of Drilling Rigs for SDA Bolts

1. Hydraulic Rock Drills

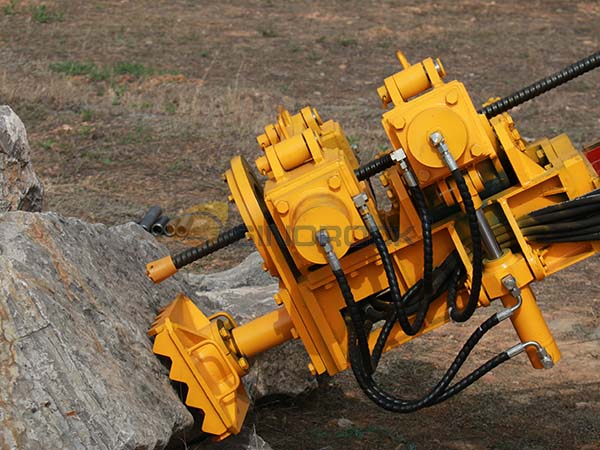

Hydraulic Rock Drills

Hydraulic rock drills are versatile rigs ideal for SDA bolt installation in small to medium-scale projects. They provide high-frequency impact and rotation, suitable for soft to medium-hard rock formations like limestone or shale.

• Key Features: Torque up to 2000 Nm, rotation speeds of 50-200 rpm, and compact design for tight spaces.

• Applications: Slope stabilization, foundation reinforcement, and small tunnel projects.

2. Multi-Arm Jumbo Rigs

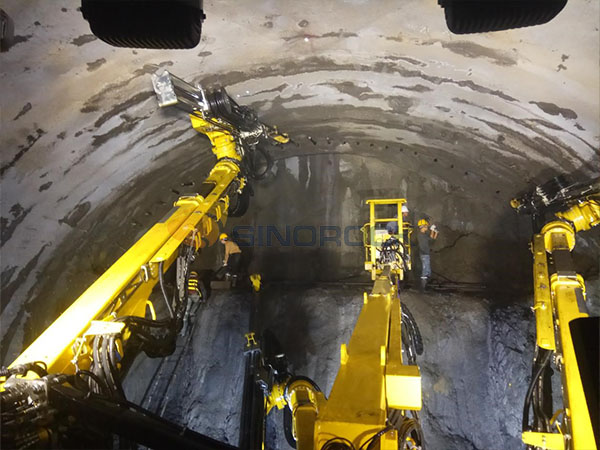

Multi-Arm Jumbo Rigs

Multi-arm jumbo rigs are heavy-duty machines designed for large-scale tunneling and underground mining. Their multiple drilling arms allow simultaneous SDA bolt installation, enhancing productivity.

• Key Features: Impact energy of 20-40 kW, advanced control systems, and efficient slag discharge for debris removal.

• Applications: Large tunnels, such as subway or railway projects, using 76mm-114mm SDA bolts.

3. High-Slope Drilling Rigs

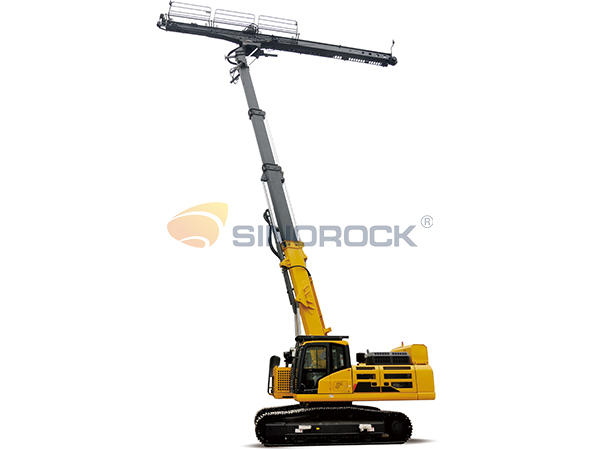

High-Slope Drilling Rigs

High-slope rigs are tailored for steep or unstable terrains, such as slope stabilization or open-pit mining. Mounted on tracks or crawlers, they offer mobility and stability.

• Key Features: Adjustable drilling angles, torque of 1500-3000 Nm, and compatibility with alloy bits for hard rock.

• Applications: Slope reinforcement, landslide prevention, and dam foundations.

4. Modified Excavator Rigs

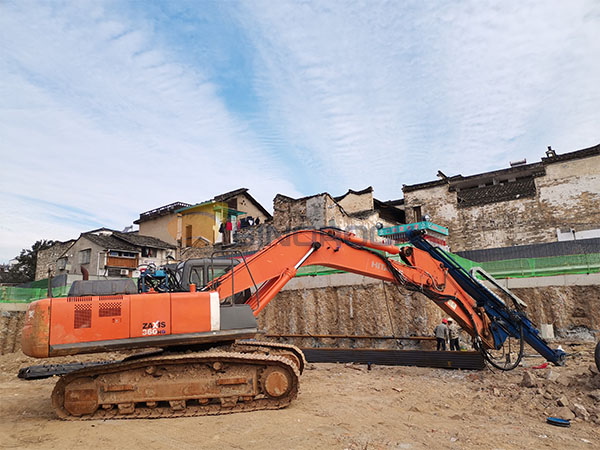

Modified Excavator Rigs

Modified excavator rigs, or dig-modified rigs, are cost-effective solutions that adapt standard excavators with drilling attachments for SDA bolt installation.

• Key Features: Torque of 1000-2000 Nm, quick setup, and compatibility with smaller bolts (38mm-76mm).

• Applications: Urban construction, small-scale foundation work, and temporary anchoring.

Key Considerations for Rig Compatibility

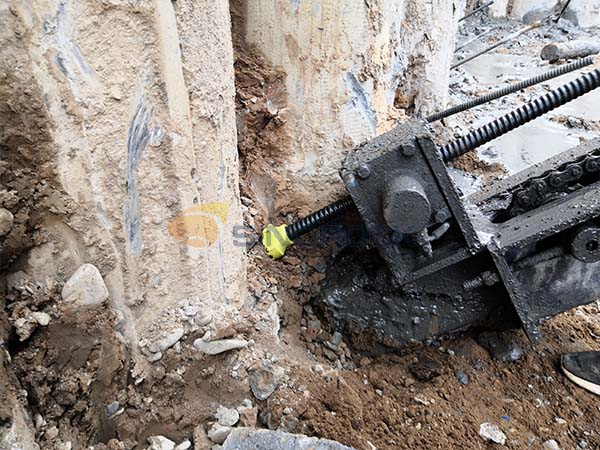

Rig Compatibility

To ensure a drilling rig works effectively with SDA bolts, consider these factors:

• Torque and Rotation Speed: SDA bolts require rigs with 1000-3000 Nm torque and 50-200 rpm rotation to drill and grout simultaneously.

• Impact Energy: Hard rock (e.g., granite, basalt) demands rigs with 15-40 kW impact energy.

• Slag Discharge: Effective debris removal prevents clogging in loose or fractured rock.

• Geological Conditions: Use alloy bits for hard pebble layers and standard bits for soft sandstone.

• Rig Mobility: Compact or crawler-mounted rigs are ideal for confined spaces or steep slopes.

Practical Tips for Selecting the Right Rig

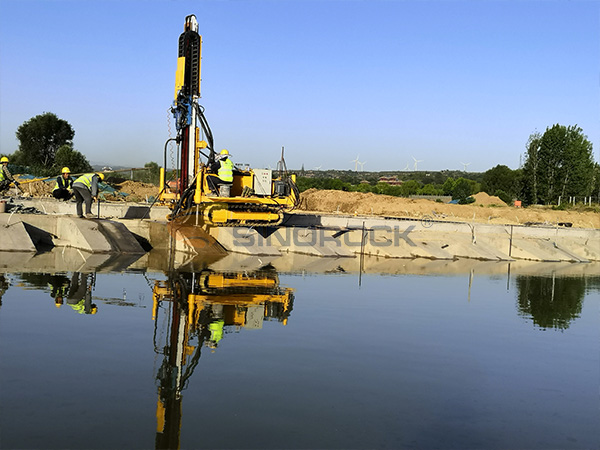

Selecting the Right Rig

• Evaluate Project Scale: Hydraulic rock drills suit small projects, while jumbo rigs are best for large tunnels.

• Match SDA Bolt Specs: Ensure the rig supports bolt diameters (38mm-114mm) and lengths (1-6m).

• Verify Compatibility: Check with SDA bolt manufacturers like Sinorock or Dywidag for rig recommendations.

• Test On-Site: Trial rigs to assess drilling speed and bolt installation quality.

• Prioritize Maintenance: Select rigs with accessible parts and reliable support to reduce downtime.

Conclusion

Choosing the right drilling rig for self-drilling anchor bolts depends on project scale, geological conditions, and equipment compatibility. Hydraulic rock drills, multi-arm jumbo rigs, high-slope rigs, and modified excavator rigs each offer unique benefits for SDA bolt installation. By assessing torque, impact energy, and site requirements, you can select a rig that maximizes efficiency and safety. Contact a reputable supplier for high-quality rigs tailored to your SDA bolt projects.
