Soil-Clay Stabilization in Foundation Projects: The Power of Self-Drilling Anchor Bolts

Time:2025-06-10From:sinorock View:

Urban development increasingly relies on underground infrastructure to support high-rise buildings, subways, tunnels, and other critical structures. Foundation projects, which form the backbone of these developments, face significant challenges when encountering clay layers. The unique geological properties of soil-clay stabilization—thixotropy, high compressibility, rheology, low permeability, low strength, and heterogeneity—create conditions that traditional stabilization methods often struggle to address effectively. These challenges elevate the risk of safety incidents, increase construction costs, and complicate efforts to achieve long-term stability. Self-drilling anchor bolts have emerged as a revolutionary technology, offering unparalleled efficiency, adaptability, and reliability in soil-clay stabilization. This article delves into the challenges of stabilizing clay layers in foundation projects, explores the transformative advantages of self-drilling anchor bolts, and provides insights into their practical applications.

Challenges of Soil-Clay Stabilization in Foundation Projects

Clay layers pose formidable obstacles to foundation projects due to their complex geological characteristics, which undermine stability and complicate construction. The following are the primary challenges associated with clay stabilization:

1. Thixotropy: When subjected to vibrations or disturbances, such as those caused by drilling or heavy machinery, clay loses its structural integrity. It transitions into a fluid-like state, increasing the risk of lateral sliding, settlement, or lateral extrusion of the foundation, which can compromise structural safety.

2. High Compressibility: Clay’s high compression coefficient makes it prone to significant deformation under vertical pressures of approximately 100 kPa. This compressibility can lead to uneven settlement, posing risks to the structural integrity of the foundation.

3. Rheology: Under sustained shear stress, clay exhibits prolonged, slow shear deformation, which can undermine the long-term stability of the foundation and lead to gradual structural shifts over time.

4. Low Permeability: Clay’s poor drainage properties hinder effective groundwater management, complicating efforts to maintain foundation stability and increasing the risk of water-related issues during construction.

5. Low Strength: With an undrained shear strength typically below 20 kPa, clay offers minimal resistance to structural loads, making it challenging to achieve robust foundation support without advanced stabilization techniques.

6. Heterogeneity: Variations in depositional environments result in uneven layers of silt or clay within the soil profile. This non-uniform distribution complicates stabilization efforts, as it introduces unpredictable soil behavior across the project site.

These challenges underscore the need for an innovative, adaptable stabilization method capable of addressing clay’s complex behavior while ensuring safety, efficiency, and cost-effectiveness.

Self-Drilling Anchor Bolts: A Revolutionary Solution for Soil-Clay Stabilization

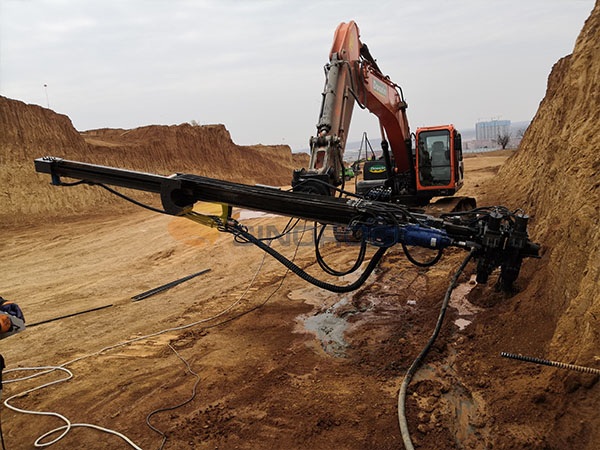

A Revolutionary Solution for Soil-Clay Stabilization

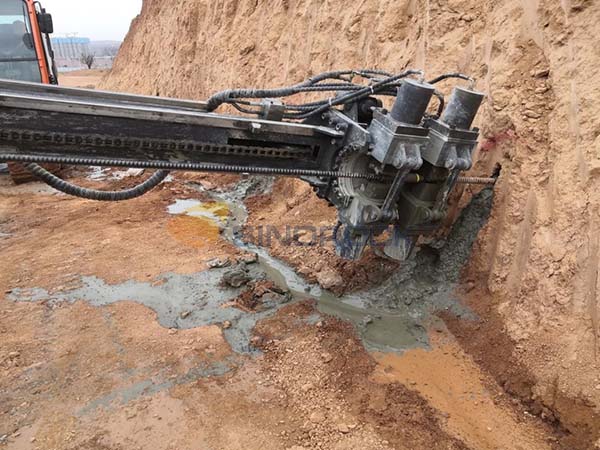

Self-drilling anchor bolts represent a cutting-edge anchoring technology designed to excel in challenging geological conditions, including clay, sand, gravel, and pebble strata. These bolts consist of a hollow anchor bar, drill bit, nut, plate, coupling, and centralizer, integrating drilling, grouting, and anchoring into a single, streamlined process. The hollow bar serves dual purposes as a drill pipe and a grout conduit, connected to a drill rig and grouting machine. During installation, the bolt is driven into the ground, and cement slurry is injected through the drill bit’s grouting holes, bonding with the surrounding soil to form a robust anchoring system with collective strength.

In clay layers prone to deformation, self-drilling anchor bolts provide tensile resistance through frictional bonding with the soil, effectively stabilizing the ground. To maximize anchoring effectiveness, the bolts are strategically aligned with the direction of the soil’s primary tensile strain, ensuring optimal load distribution and stability.

Key Advantages of Self-Drilling Anchor Bolts in Soil-Clay Stabilization

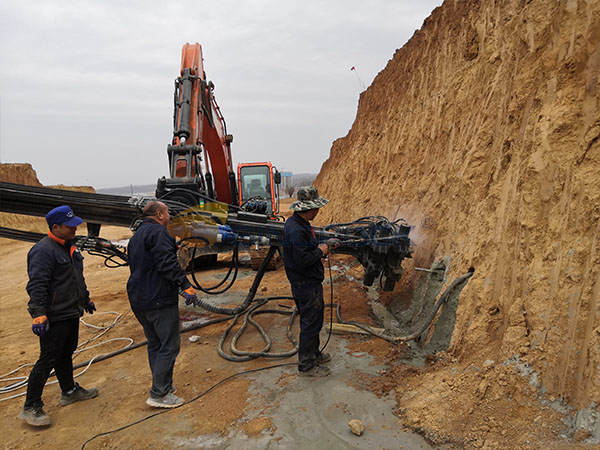

Self-Drilling Anchor Bolts in Soil-Clay Stabilization

Self-drilling anchor bolts offer a suite of benefits that make them an ideal choice for soil-clay stabilization in foundation projects:

1. Streamlined Construction Process: By integrating drilling, grouting, and anchoring, SDA bolts eliminate the need for casing pipes, reducing construction steps and accelerating project timelines by approximately 25%. This efficiency is particularly valuable in urban settings with tight schedules.

2. Collapse Prevention in Unstable Clay: Traditional anchoring methods require drill pipe removal, which often leads to hole collapse in unstable clay layers. SDA bolts remain in place after drilling, preventing collapse and ensuring uninterrupted construction, even in challenging conditions.

3. Cost Efficiency: The simplified construction process and reduced material waste lower overall costs by about 25%. This makes SDA bolts a cost-effective solution for clay environments where traditional methods are prone to inefficiencies.

4. Superior Anchoring Performance: Bottom-up grouting ensures complete void filling, creating a strong, cohesive bond between the bolt and the surrounding soil. This enhances foundation stability and improves the structural integrity of the project.

5. Adaptability to Complex Conditions: The continuous wave thread design allows bolts to be cut or extended with couplers, enabling their use in confined spaces or diverse geological conditions, including heterogeneous clay layers.

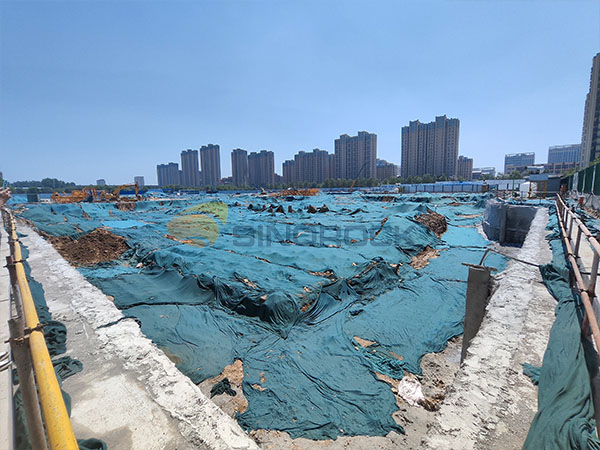

Real-World Applications and Success Stories

To illustrate the effectiveness of self-drilling anchor bolts, consider an urban foundation project in a region with a 2-meter-thick clay layer. Traditional stabilization methods struggled with frequent hole collapses, leading to delays and escalating costs. By adopting self-drilling anchor bolts, the project team completed stabilization efficiently, avoiding collapses and reducing construction time by 20%. The integrated drilling and grouting process ensured a stable anchoring system, and the project’s overall costs were significantly lowered. This case highlights the technology’s ability to deliver reliable, cost-effective solutions in challenging clay-rich environments, making it a preferred choice for urban foundation projects, tunnel reinforcements, and slope stabilization.

Why Choose Self-Drilling Anchor Bolts for Soil-Clay Stabilization?

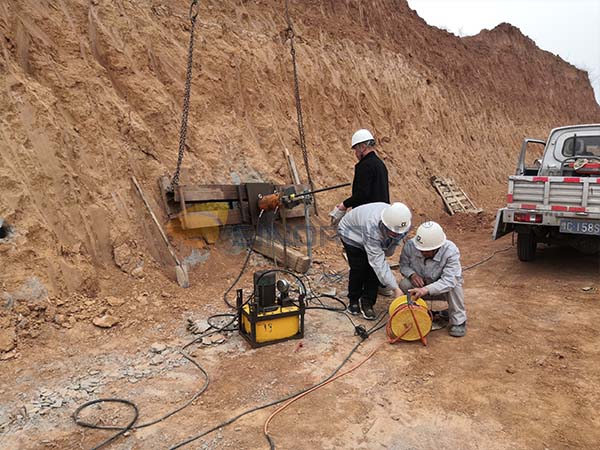

Why Choose Self-Drilling Anchor Bolts

Self-drilling anchor bolts offer compelling advantages over conventional stabilization methods, making them a standout choice for foundation projects in clay-rich environments:

• Enhanced Efficiency: The integrated process reduces construction time and labor, streamlining project execution.

• Improved Safety: By preventing hole collapse, SDA bolts enhance worker safety and ensure project continuity.

• Cost Savings: Reduced material waste and fewer construction steps lower costs, improving project economics.

• Sustainability: Minimized environmental disruption aligns with green construction practices, supporting sustainable urban development.

Broader Implications for Urban Development

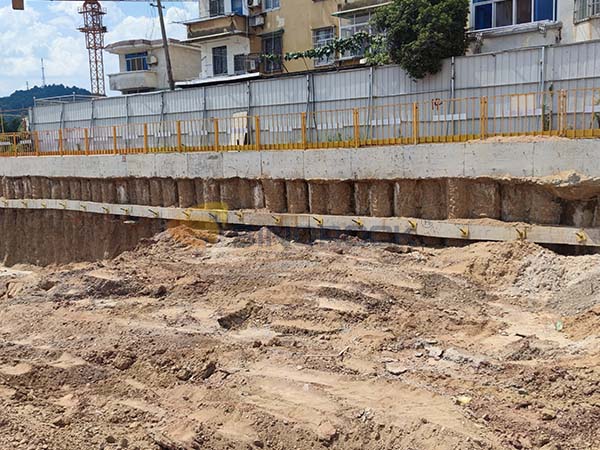

Transforming Soil-Clay Stabilization with Self-Drilling Anchor Bolts

The adoption of self-drilling anchor bolts extends beyond individual projects, contributing to the broader goals of urban development. By enabling faster, safer, and more cost-effective foundation stabilization, this technology supports the construction of resilient infrastructure in rapidly growing cities. Its versatility in handling complex geological conditions, such as clay layers, makes it an invaluable tool for engineers and contractors working on high-stakes projects. Furthermore, the reduced environmental impact of SDA bolts aligns with the increasing emphasis on sustainable construction practices, helping cities meet their environmental and infrastructural goals.

Conclusion: Transforming Soil-Clay Stabilization with Self-Drilling Anchor Bolts

Clay layers present significant challenges to foundation projects, but self-drilling anchor bolts offer a reliable, efficient, and adaptable solution. By overcoming the limitations of traditional stabilization methods, they ensure robust anchoring, reduce costs, and enhance safety in complex geological conditions. As urban development continues to push the boundaries of underground construction, self-drilling anchor bolts are poised to play a pivotal role in building safer, smarter, and more sustainable cities. For engineers and contractors tackling soil-clay stabilization challenges, adopting this innovative technology is a critical step toward achieving exceptional project outcomes.
