Self-Drilling Anchor Bolts for Landslide Prevention: Applications and Installation

Time:2026-03-25From:sinorock View:

Landslides are common geological hazards in mountainous and hilly areas, often posing serious threats to highways, railways, water conservancy projects, and local communities. With advancements in engineering technology, self-drilling anchor bolts have become a widely used and efficient technique in landslide prevention. They ensure safety while improving construction efficiency and are an essential tool in modern slope stabilization.

1. When to Use Self-Drilling Anchor Bolts

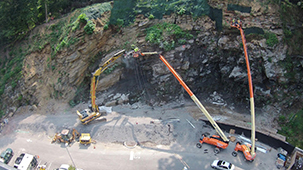

Self-Drilling Anchor Bolts for Landslide Prevention

In landslide prevention, self-drilling anchor bolts are mainly suitable in the following situations:

1.1 Loose sand or gravel soil

In these soil conditions, traditional drilling is prone to collapse. Self-drilling anchors can drill and grout simultaneously, stabilizing the hole and improving anchorage. They can also be combined with shotcrete or mesh to strengthen slope surface support.

1.2 Weathered rock or loose rock formations

Self-drilling anchors with grouting can increase the overall shear strength of the rock mass. During construction, attention must be paid to anchor length and anchorage depth to ensure the bolt penetrates weak layers for effective stabilization.

1.3 Steep slopes or limited construction space

Self-drilling anchors can be installed with small equipment, making construction fast and safe, which is ideal for steep or confined slopes. Safety precautions are still necessary, and temporary support platforms may be needed if required.

1.4 High groundwater or water-rich slopes

Self-drilling anchors can be combined with drainage holes or grouting to reduce water pressure, decreasing the driving force of the landslide. Drainage holes should pass through potential sliding surfaces to prevent new movements caused by water pressure.

1.5 Emergency reinforcement of active landslides

When a landslide is active or moving, rapid stabilization is needed. Self-drilling anchors are suitable due to their fast installation. Before construction, the landslide range should be quickly assessed, and anchors arranged appropriately.

1.6 Stable slopes requiring long-term protection

For critical projects (e.g., highways, railways, reservoir slopes), self-drilling anchors with grouting form a solid composite body, providing strong tensile strength and long-term stability. Material durability and grout quality are key to long-term performance.

2. Advantages of SDA Bolts for Landslide Stabilization

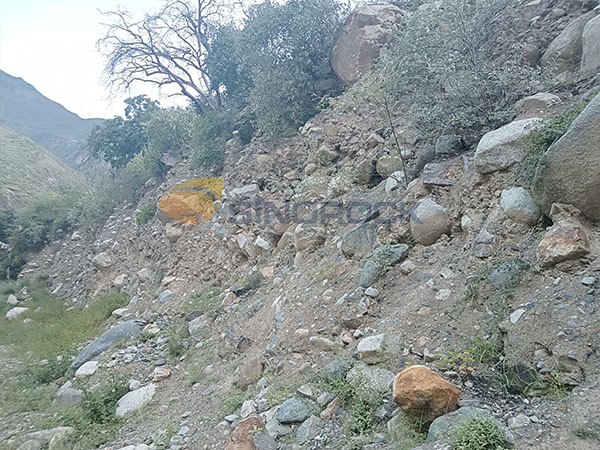

Advantages of SDA Bolts for Landslide Stabilization

2.1 Simple and efficient installation

The main advantage of self-drilling anchors lies in their simple and rapid installation. Unlike conventional anchors, which require pre-drilling, rod insertion, and subsequent grouting, self-drilling anchors can drill and grout simultaneously, directly securing the anchor in soil or weak rock. This approach reduces construction steps and enables large-scale slope reinforcement in a short time, making it especially suitable for emergency stabilization and soft-soil landslides.

2.2 Provides overall slope stability

In terms of stabilization mechanisms, self-drilling anchors integrate with the surrounding soil through grouting, forming a cohesive reinforcement structure. They not only fix the slope but also enhance soil friction and shear strength, significantly improving overall slope stability. Additionally, by applying pre-stress, self-drilling anchors can actively resist sliding forces, reinforcing the slope before movement occurs and thereby reducing the risk of landslides.

2.3 Stress transfer

Self-drilling anchors can transfer stress from the upper slope to deeper, stable layers, dispersing stress and reducing the sliding pressure on surface soils. Compared to conventional anchors, self-drilling anchors emphasize installation efficiency and surface soil integration, making them suitable for a wider range of conditions.

3. Recommended Specifications for SDA Bolts

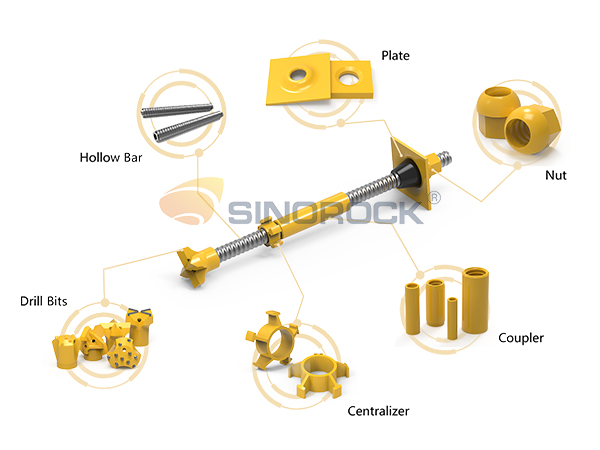

Recommended Specifications for SDA Bolts

Self-drilling anchor specifications should be selected based on landslide type, soil conditions, and construction constraints. General recommendations:

· Diameter: 22–32 mm

· Length: penetrate sliding surface into stable layer, 4–15 m

· Spacing: 1.5–3 m

· Prestress: 50–200 kN

· Grouting: cement slurry, water-cement ratio 0.45–0.6

This configuration can effectively stabilize shallow to medium-deep landslides and improve slope safety.

4. Installation Steps for SDA Bolts

Installation Steps for SDA Bolts

The construction of self-drilling anchors primarily involves several key steps:

4.1 Slope Preparation

The construction of self-drilling anchors begins with slope preparation. Before construction, debris, vegetation, and loose soil on the slope should be cleared to ensure a level working surface. Anchor positions are then arranged according to the scale of the landslide and the slope topography, usually in a trapezoidal or grid pattern, to ensure uniform reinforcement.

4.2 Drilling and Grouting

The self-drilling rod is directly drilled into the soil or weak rock, with a grouting channel at the rod tip that allows simultaneous injection of cement grout during drilling. The grout bonds with the surrounding soil to form an integrated reinforcement structure. Depending on soil conditions, the water-cement ratio can be adjusted, or additives such as bentonite can be included to improve anchoring effectiveness.

4.3 Slope Surface Treatment

The slope surface should be treated for protection, such as installing protective nets or planting vegetation to prevent soil erosion. For slopes requiring long-term monitoring, tension meters or displacement monitoring devices can be installed to ensure the sustained effectiveness of the anchors.

5. Conclusion

Self-drilling anchor bolts have become an indispensable tool in landslide prevention and slope stabilization. They are highly adaptable to various soil and rock conditions, suitable for steep or confined slopes, and provide rapid, efficient, and long-lasting reinforcement. By integrating with surrounding soil and transferring stress to deeper layers, SDA bolts not only enhance slope stability but also reduce the risk of future landslides. Proper selection of specifications, careful installation, and ongoing monitoring ensure their effectiveness in both emergency situations and long-term slope protection.
