What Is Self-Drilling Pipe Roof?

Time:2025-06-27From:sinorock View:

In tunnel and mining engineering, stabilizing surrounding rock under complex geological conditions is a critical challenge. The self-drilling pipe roof addresses this issue through an efficient construction process, significantly improving project safety and efficiency while reducing costs and time. Explore this innovative technology in detail with Sinorock!

1. Introduction

Self-Drilling Pipe Roof

1.1 Definition

The self-drilling pipe roof is an advanced support technology that integrates drilling, grouting, and anchoring functions to stabilize surrounding rock in complex geological conditions. It excels in weak and broken strata, loose rock masses, and areas with challenging hydrogeological conditions. By streamlining construction, self-drilling pipe roofs enhance project safety and speed. Unlike traditional methods, they eliminate the need for additional casing, reducing borehole collapse risks and adapting to diverse geological environments, making them a game-changer in underground engineering.

1.2 Components

The self-drilling pipe roof system consists of the following core components:

• Hollow Anchor Bar: The primary support structure, made of high-strength steel with a hollow core for grouting, ensures robust load-bearing capacity.

• Rock Drill Bit: Selected based on geological conditions, such as hard rock, soft soil, or mixed strata drill bits, to optimize drilling efficiency.

• Coupling Sleeve: Extends the anchor bar length to cover the entire support area, meeting varying depth requirements.

• Supplementary Components: Plates, nuts, and centralizers secure the anchor bar. Mainly used for perimeter rock system support.

These components form an efficient, stable support system for applications like tunnel excavation and mine tunnel support.

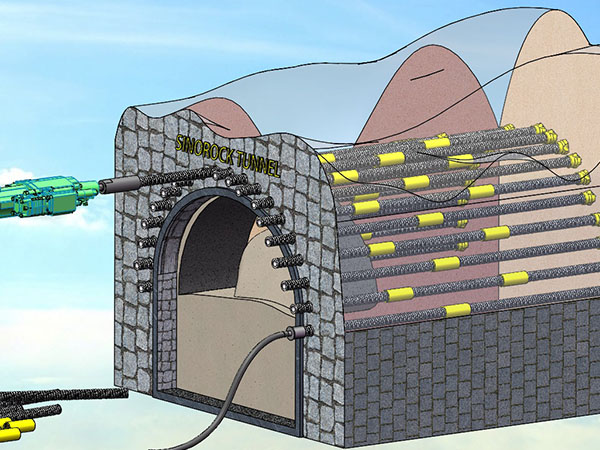

Self-Drilling Pipe Roof

1.3 Characteristics

Key characteristics of self-drilling pipe roofs include:

• Integrated Construction: Combines drilling, grouting, and anchoring in self-drilling anchor bolt, reducing time and procedural complexity.

• High Efficiency: Eliminates casing needs, minimizing borehole collapse risks and speeding up construction.

• Strong Adaptability: Suitable for broken rock, loose soil, and high-stress zones, meeting diverse project needs.

• High Rigidity: Forms a robust bearing arch via grouting, reducing radial rock deformation.

• Flexibility: Anchor bars can be cut or extended for confined spaces or deep support applications.

• Durability: As part of permanent support, ensures long-term stability with minimal maintenance.

2. Application Scenarios

2.1 Tunnel Pre-Support with Pipe Roofs

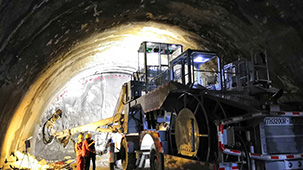

Tunnel Pre-Support with Pipe Roofs

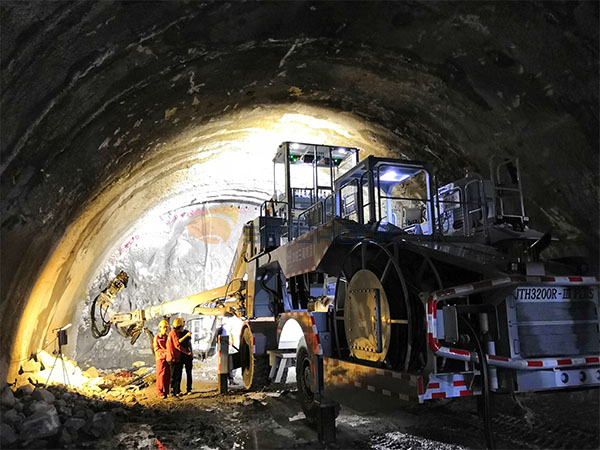

Self-drilling pipe roofs are widely used for pre-support in highway, railway, and subway tunnels, especially in weak and broken strata. Installed before excavation, they form a stable “umbrella-like” structure to control rock deformation, preventing collapses and surface subsidence. For example, in Southwest China’s railway tunnel projects, self-drilling pipe roofs have reduced risks in complex karst regions, making them a top choice for tunnel engineering.

2.2 Mining Operations

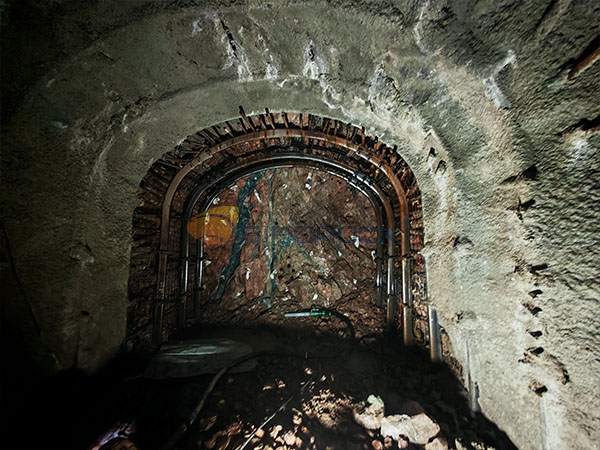

Mining Operations

In mining, self-drilling pipe roofs address unstable rock conditions like loose rock masses or water-bearing strata. Their efficient drilling and grouting ensure tunnel stability and worker safety. In hard rock mines, they enhance rock stability by filling cracks with pressure grouting, reducing maintenance costs, especially in deep or complex geological conditions.

3. Construction Process and Precautions

The construction process for self-drilling pipe roofs includes:

1. Geological Assessment: Conduct a detailed survey to analyze rock types, hydrogeological conditions, and stress distribution, selecting appropriate drill bits and grouting materials.

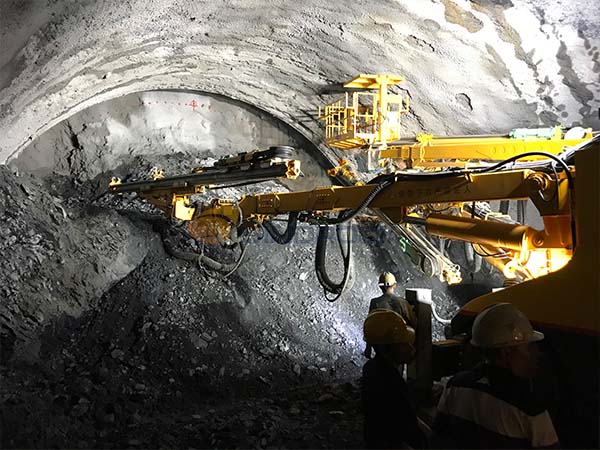

2. Drilling and Installation: Drill directly with SDA bolts, creating boreholes and installing anchor bars simultaneously, eliminating casing needs.

3. Grouting: Inject grout through the hollow anchor bar to fill rock cracks, enhancing anchoring and stability.

4. Connection and Extension: Use coupling sleeves to extend anchor bars, covering the entire support area.

5. Monitoring and Adjustment: Monitor rock deformation, surface subsidence, and grouting effects, adjusting pressure or layout as needed.

Precautions:

• Match drill bits to geological conditions to avoid inefficiency or equipment damage.

• Control grouting pressure to prevent leakage or rock disturbance.

• Increase monitoring in high-stress or water-bearing strata for safety.

• Train personnel on equipment operation and emergency procedures.

4. Self-Drilling Pipe Roofs vs. Traditional Pipe Roofs

Self-Drilling Pipe Roofs

Self-drilling pipe roofs outperform traditional pipe roofs in:

• Construction Efficiency: Traditional methods require separate drilling and pipe insertion, risking borehole collapse; self-drilling pipe roofs combine steps, shortening timelines.

• Geological Adaptability: Traditional pipe roofs need casing in broken strata; self-drilling pipe roofs don’t, offering greater adaptability.

• Cost-Effectiveness: Traditional methods require more labor and equipment; self-drilling pipe roofs have higher initial costs but lower overall expenses.

• Safety: Fewer steps reduce collapse and injury risks, enhancing safety.

5. Advantages of Self-Drilling Pipe Roofs

Unique advantages include:

• Rapid Construction: Integrated drilling and support shorten timelines for time-critical projects.

• Environmentally Friendly: Minimizes surface disturbance, ideal for urban or sensitive areas.

• High Stability: Pressure grouting forms a robust bearing arch, improving rock stability.

• Flexible Design: Adjustable anchor length and layout for diverse conditions.

• Low Maintenance Costs: Reduces ongoing maintenance by optimizing rock stability.

6. Conclusion

The self-drilling pipe roof, integrating drilling, grouting, and anchoring, enhances efficiency and safety in tunnel, mining, and underground projects. Its adaptability, rapid construction, and eco-friendliness make it a top choice for modern underground engineering. Compared to traditional pipe roofs, it excels in efficiency, cost, and safety, particularly in weak or high-stress strata. As technology advances, self-drilling pipe roofs will play a greater role in global underground construction, supporting infrastructure development reliably.
