Top 6 Critical Steps for Self-Drilling Anchor Bolt Construction

Time:2025-05-23From:sinorock View:

Self-drilling anchor bolts (SDA) have revolutionized modern construction and geotechnical engineering, delivering unparalleled support in challenging ground conditions. These innovative systems are widely employed in critical infrastructure projects, such as tunnels, hydroelectric plants, mining operations, and civil engineering structures. By providing robust stabilization in unstable geological formations, SDA bolts prevent structural failures and ensure project safety. This comprehensive guide explores the six critical steps for successful self-drilling anchor bolt installation, offering practical insights to maximize their effectiveness and enhance construction outcomes.

Self-Drilling Anchor Bolts Construction

What Are Self-Drilling Anchor Bolts?

Self-drilling anchor bolts are a cutting-edge solution that integrates drilling, anchoring, and grouting into a single, streamlined process. Unlike traditional anchoring methods that require pre-drilled holes, SDA bolts are equipped with a hollow anchor bar and a drill bit, allowing simultaneous drilling and installation. This efficiency makes them ideal for demanding environments, such as loose rock, fractured soil, or unstable terrains. Their versatility ensures projects remain on schedule while addressing challenges like rock movement, ground deformation, and variable soil conditions.

Self-Drilling Anchor Bolt framework

The adaptability of SDA bolts has made them indispensable in geotechnical engineering. For instance, in tunnel construction, they reinforce weak rock formations, while in mining, they secure unstable slopes. Their ability to function in diverse conditions enhances structural integrity and minimizes risks, making them a preferred choice for engineers worldwide.

Critical Steps for Successful Self-Drilling Anchor Bolt Construction

To ensure optimal performance, follow these critical steps during the installation of self-drilling anchor bolts:

1. Provide Temporary Support for Structural Safety

Ensuring structural safety during SDA bolt installation is paramount, as drilling can introduce vibrations that destabilize the primary structure. Temporary supports are essential in high-risk areas like tunnels, excavations, or slopes.

Temporary Support Setup: Install robust temporary supports, such as steel props or shoring systems, to counteract vibrations and maintain stability during drilling. These supports act as a safety net, protecting workers and the structure.

Load-Bearing Assessment: Conduct a thorough analysis of the load-bearing capacity of temporary supports. Use engineering calculations to ensure they can withstand stresses without collapsing or shifting.

Routine Inspections: Regularly inspect both temporary and primary supports to detect signs of stress or deformation. Daily checks during active drilling phases can prevent unforeseen issues.

By prioritizing temporary support, engineers enhance worker safety, maintain project timelines, and prevent costly structural damage.

2. Mark and Clean Holes for Precision

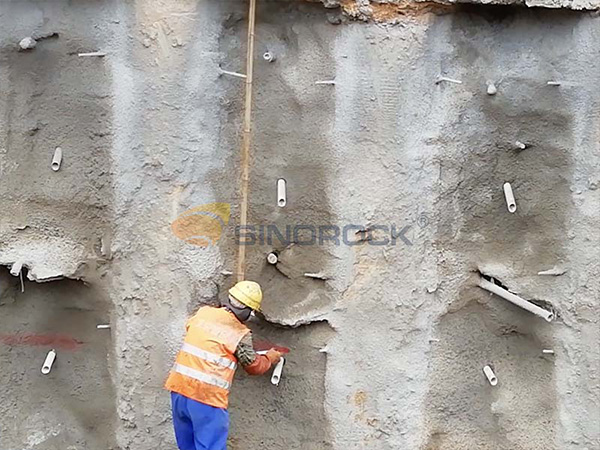

delimit

Accurate placement and clean holes are foundational to effective anchoring. Precision in marking and cleaning ensures that SDA bolts are securely installed and evenly distribute loads.

Pre-Drilling Marking: Use bright, durable markers, such as red spray paint, to designate rock bolt locations after precise measurements. This step minimizes errors and ensures alignment with engineering plans.

Immediate Hole Cleaning: After drilling, remove debris like dust or loose rock using air or water flushing techniques. Clean holes promote strong grout adhesion, enhancing rock bolt stability.

Quality Control: Verify that marked locations align with design specifications before drilling. Double-checking measurements can prevent costly rework.

Proper marking and cleaning optimize the bond between the rock bolt and the surrounding material, ensuring long-term structural integrity.

3. Optimize Grouting with Stop-Plugs

Effective grouting is critical to securing self-drilling anchor bolts, as it creates a strong bond between the bolt and the surrounding rock or soil. Stop-plugs play a vital role in this process.

Stop-Plug Installation: Place a stop-plug at the hole’s orifice to control grout flow and prevent leakage. This ensures that grout fills the entire cavity uniformly.

Grout Consistency: Use high-quality grout with the right viscosity to achieve optimal bonding. Test grout mixes before application to confirm suitability for site conditions.

Monitoring Grout Distribution: Check that grout spreads evenly around the bolt, filling all voids. Proper plug use prevents weak spots that could compromise anchor strength.

By optimizing grouting techniques, engineers ensure robust support and enhance the durability of SDA bolt installations.

4. Manage Water Seepage Effectively

Groundwater seepage can weaken grout bonds, reducing the effectiveness of self-drilling anchor bolts. Proactive water management is essential for long-term rock bolt performance.

Water Diversion: Drill additional relief holes to redirect significant seepage away from the rock bolt site. This prevents water from interfering with grout curing.

Long-Term Drainage Systems: Install tailored drainage solutions, such as perforated pipes or gravel layers, to manage water flow and protect the rock bolt site over time.

Site Assessment: Evaluate groundwater conditions before installation to anticipate seepage risks. Hydrological surveys can inform drainage strategies.

Effective water management preserves grout integrity, ensuring that rock bolts remain secure in challenging environments.

5. Control Drilling Speed to Prevent Jamming

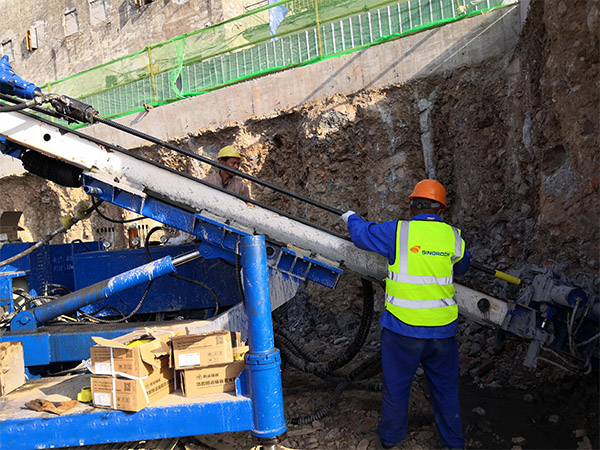

Self-Drilling Anchor Bolts dig into

Drilling speed directly impacts the efficiency and success of SDA bolt installation. Improper speeds can cause the “clip-drill” phenomenon, where the drill bit jams in soft or loose layers.

Consistent Drilling Speed: Maintain a steady speed to prevent material buildup around the drill bit. This reduces friction and ensures smooth penetration.

Adjust for Soft Strata: In materials like mud or sand, lower the drilling speed to minimize jamming risks. Gradual adjustments prevent equipment damage and delays.

Equipment Calibration: Regularly calibrate drilling equipment to ensure consistent performance across varying ground conditions. Routine maintenance reduces wear and tear.

Controlled drilling enhances efficiency, protects equipment, and ensures accurate rock bolt placement.

6. Conduct Thorough Final Checks

Comprehensive inspections are crucial to verifying the quality and safety of SDA bolt installations. Thorough checks before, during, and after installation minimize risks.

Pre- and Post-Installation Checks: Inspect holes for cleanliness, confirm stop-plug security, and verify grout setting after installation. These steps ensure all components function as intended.

Detailed Documentation: Record critical data, including drilling speeds, grout volumes, and any adjustments made during installation. This documentation aids future maintenance and audits.

Periodic Maintenance: Monitor rock bolt over time, especially in high-stress environments like mines or tunnels. Regular inspections detect signs of degradation, such as corrosion or loosening.

By conducting meticulous checks, engineers ensure the long-term reliability and safety of self-drilling anchor bolt systems.

Why Careful SDA bolts Application Matters

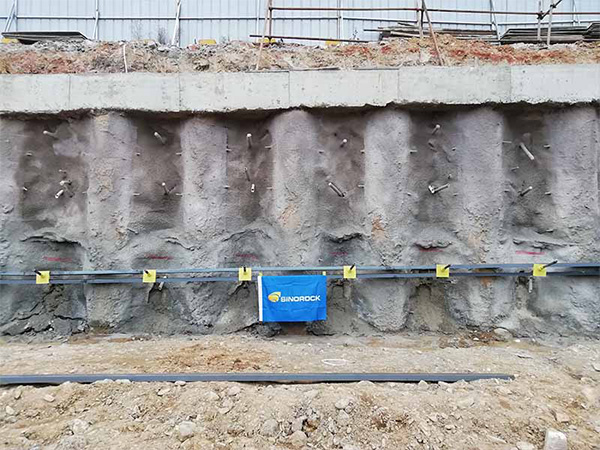

Self-Drilling Anchor Bolts Construction accomplish

Self-drilling anchor bolts are indispensable for safe and efficient construction in challenging geotechnical conditions. Their ability to stabilize loose or fractured ground makes them a cornerstone of modern engineering projects. However, their effectiveness hinges on precise installation practices. By adhering to these six critical steps—temporary support, precise marking, optimized grouting, effective water management, controlled drilling, and thorough inspections—engineers can maximize stability, reduce project delays, and lower costs. Neglecting any of these steps risks compromising structural integrity, leading to safety hazards and financial losses.

Additional Best Practices for SDA bolts Success

To further enhance SDA bolt performance, consider these supplementary tips:

Training and Expertise: Ensure that installation teams are trained in SDA bolt techniques and familiar with site-specific challenges.

Quality Materials: Use high-quality bolts and grout to withstand environmental stresses and ensure durability.

Environmental Considerations: Adapt installation techniques to site-specific conditions, such as soil type, rock hardness, or seismic activity.

Conclusion

Self-drilling anchor bolts offer unmatched reliability in stabilizing complex ground conditions, making them a vital tool in geotechnical engineering. By following these six critical steps—providing temporary support, marking and cleaning holes, optimizing grouting, managing water seepage, controlling drilling speed, and conducting thorough inspections—construction professionals can achieve safe, durable, and cost-effective installations. These proven strategies empower engineers to tackle challenging projects with confidence, ensuring structural stability and project success. Stay ahead in construction and geotechnical engineering by implementing these best practices for self-drilling anchor bolt installations.
