Self-Drilling Anchor Bolts: Principles and Applications

Time:2025-06-06From:sinorock View:

Self-drilling anchor bolts are a cornerstone of geotechnical engineering, widely used in slope stabilization, foundation pit support, and tunnel pipe shed support. Depending on geological conditions and project requirements, engineers can select various support structures to achieve optimal results. This article explores the composition, working principles, mechanisms, and applications of self-drilling anchor bolts, offering a comprehensive guide to their role in modern construction.

What Are Self-Drilling Anchor Bolts?

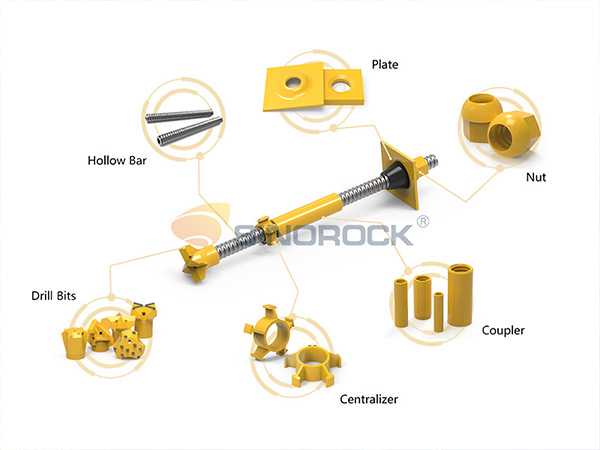

Self-drilling anchor bolts are advanced engineering components that integrate drilling, grouting, and anchoring functions. They consist of six key parts:

• Drill Bit: Cuts through rock or soil to create a borehole.

• Hollow Anchor Bar: Serves as the main structural element, transferring tensile forces and channeling grout.

• Coupler: Connects the anchor rod to the drill bit or other components.

• Plate: Distributes stress and secures the rock bolt.

• Nut: Applies prestress to enhance anchoring strength.

• Centralizer: Ensures the anchor rod remains centered in the borehole for precise installation.

The self-drilling anchor bolt is driven by a drilling rig, with the drill bit penetrating the rock or soil. After drilling, cement grout is injected through the hollow rod, filling gaps in the surrounding medium. Once the grout solidifies, it forms a robust rock bolt Finally, a plate and nut apply prestress to complete the support structure.

How Self-Drilling Anchor Bolts Work

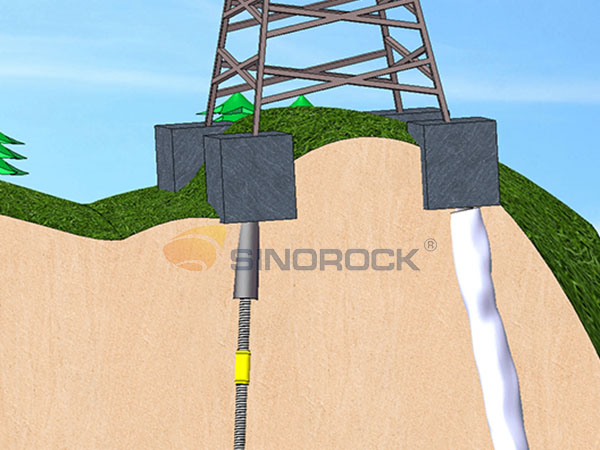

Drilling Mechanism

The functionality of self-drilling anchor bolts relies on three core processes: drilling, grouting, and anchoring. Below is a detailed breakdown of each stage:

1. Drilling Mechanism

Using a conventional drilling rig, the hollow anchor rod is driven into the rock or soil, creating a borehole in a single operation without the need for rod extraction. The hollow structure allows efficient debris removal, ensuring a smooth and effective drilling process.

2. Grouting Mechanism

Once the borehole is complete, cement grout is injected under pressure through the hollow rod, exiting via the drill bit’s grout holes. The grout fills voids in the surrounding rock or soil, solidifying to form a strong anchor bar that bonds tightly with both the rod and the geological medium. This process significantly enhances the strength and stability of the surrounding material.

3. Anchoring Mechanism

After grouting, a plate and nut are installed on the exposed portion of the anchor rod. When the surrounding rock or soil deforms, the resulting forces are transferred through the plate and nut to the anchor body. The anchor body generates anchoring force through friction with the surrounding medium, effectively restraining further deformation and ensuring structural stability.

Mechanisms of Self-Drilling Anchor Bolts

Self-drilling anchor bolts perform multiple functions depending on geological conditions and project needs. Here are the five primary mechanisms:

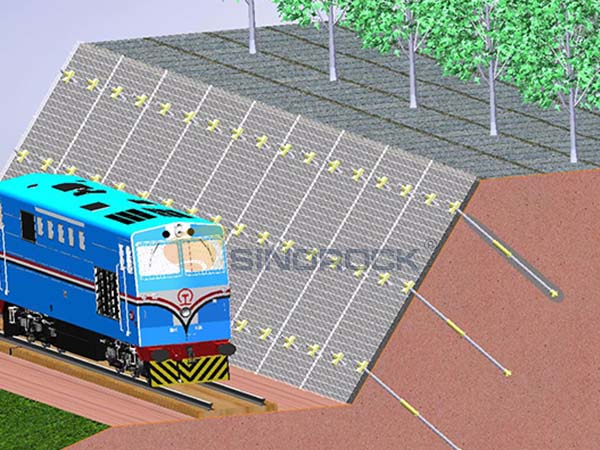

1. Wedging Effect

In complex geological settings with multiple discontinuous planes, self-drilling anchor bolts can penetrate these planes, preventing or minimizing movement along faults or fractures. This wedging effect enhances rock mass stability.

2. Suspension Effect

When the surface rock is fractured but the deeper layers are stable, self-drilling anchor bolts suspend the unstable surface onto the stable rock mass through grouting. This stabilizes the surface but is limited to scenarios with a stable underlying layer.

3. Composite Beam Effect

To address the limitations of the suspension effect, self-drilling anchor bolts can integrate multiple geological layers into a unified composite beam through tensile forces. This structure enhances shear and bending resistance, preventing layer misalignment or deformation under pressure.

4. Extrusion Reinforcement Effect

After installation, the anchor bodies formed by self-drilling anchor bolts work together to create a cohesive system. In tunnel construction, systematically arranged bolts form an arched compression zone, reinforcing loose rock masses and improving overall load-bearing capacity.

5. Prestressing Effect

Self-drilling prestressed anchor bolts apply compressive stress to the geological medium, enhancing its strength. By connecting structures to the rock or soil, these bolts create a robust anchoring system that improves compressive and shear capacity, effectively resisting external loads.

Applications of Self-Drilling Anchor Bolts

Self-drilling anchor bolts are versatile and widely applied in geotechnical engineering. Below are their primary applications:

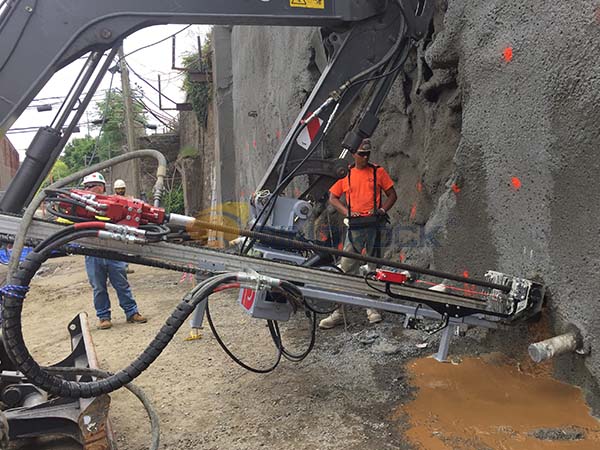

1. Slope Stabilization

In slope engineering, self-drilling anchor bolts transfer deformation forces through the plate and nut to the rock bolt, which resists movement via friction with the surrounding medium. This prevents slope failure and ensures long-term stability.

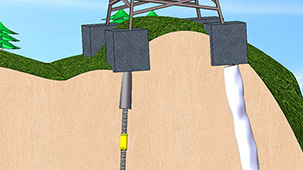

2. Foundation Pit Support

In foundation pit construction, self-drilling anchor bolts provide constraint through frictional bonding with the soil, limiting deformation and enhancing stability, even in challenging geological conditions.

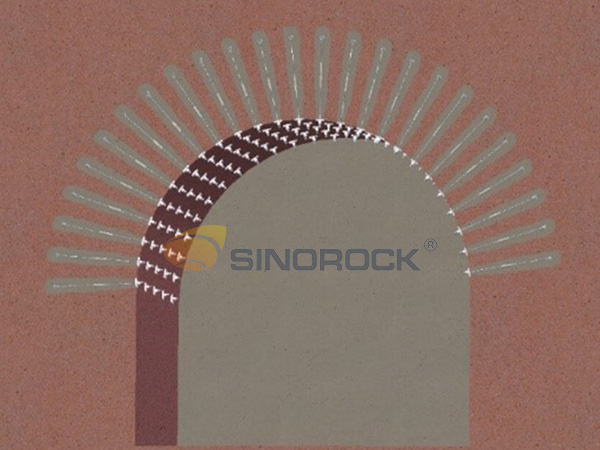

3. Tunnel Roof Bolting

Tunnel Roof Bolting

Self-drilling pipe roof system offer high toughness, minimizing radial plastic deformation of the surrounding rock. They form a load-bearing arch, ensuring safety during tunnel excavation and early-stage support while reducing surface settlement and preventing collapse.

Conclusion

Self-drilling anchor bolts enhance rock mass stability through stitching, beam formation, internal compression, and ground improvement. Their efficient installation and versatile mechanisms make them indispensable in slope stabilization, foundation pit support, and tunnel pipe shed applications. Whether addressing complex geological challenges or high-strength support needs, self-drilling anchor bolts provide reliable solutions, solidifying their role as a critical technology in modern geotechnical engineering.
