Railway Slope Protection Guide: Comprehensive Strategies to Prevent Collapses

Time:2025-06-18From:sinorock View:

Railway slopes are the unsung heroes of safe and efficient rail transport. Their stability directly affects the integrity of railway operations, and any collapse, if left unaddressed, can lead to catastrophic consequences such as train derailments, service interruptions, or even loss of life. Ensuring the safety of railway slopes is a top priority for engineers, geologists, and professionals in the anchoring industry. This guide discusses the causes of railroad slope collapse, scientific treatment methods, and the advantages of self-drilling anchor technology, aiming to provide practitioners with comprehensive technical references and practical guidance.

Causes of Railway Slope Collapses

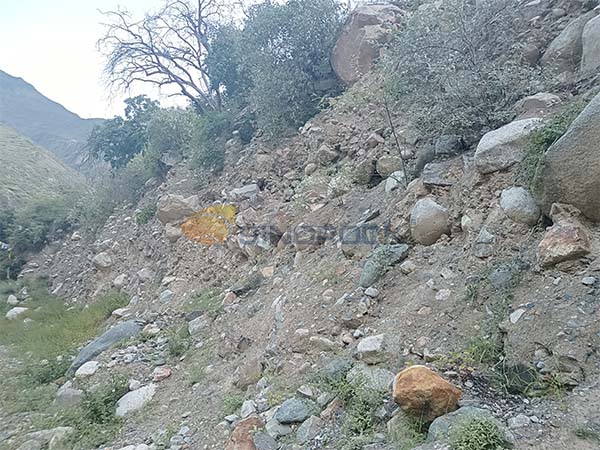

railway slope protection guide

Railway slope collapses are often triggered by a combination of environmental, geological, and operational factors. Below is a detailed breakdown of the three main causes:

1. Trench Slope Collapse

In remote mountainous regions, railway slopes frequently suffer from poorly designed drainage systems. Inadequate drainage ditches fail to channel water effectively, leading to water accumulation. The dynamic forces from passing trains create vibrations that stress the slope, fracturing the rock-soil mass and clogging drainage channels. Overflowing water saturates the soil, reducing its stability and triggering trench slope collapse. Furthermore, slopes constructed without considering local geological conditions—such as those in loose soil or fault zones—are prone to failure if reinforcement measures are absent.

2. Rockfall and Landslides

Railway construction in mountainous areas involves extensive excavation, which disrupts the natural equilibrium of hillsides. Exposed slopes become susceptible to weathering and erosion. Rainwater infiltration reduces the shear strength of soil, particularly in areas with weak rock layers or fault zones. Fractured rock masses may form reverse or overturned slopes, causing debris to slide along interfaces, leading to rockfalls or landslides. Vegetation loss and prolonged exposure to wind further destabilize the slope, compounding the risk.

3. Rainwater Impact

Heavy or prolonged rainfall is a primary catalyst for slope instability. Rainwater seeping into the slope or subgrade increases pore water pressure, weakening soil cohesion and reducing shear strength. The intensity and duration of rainfall, coupled with the soil’s permeability, dictate the extent of damage. For instance, clay-rich slopes may deform plastically after extended rain exposure, while sandy slopes may lose bearing capacity rapidly due to high permeability. In extreme weather events, rainfall can trigger widespread slope failure, posing significant risks to railway infrastructure.

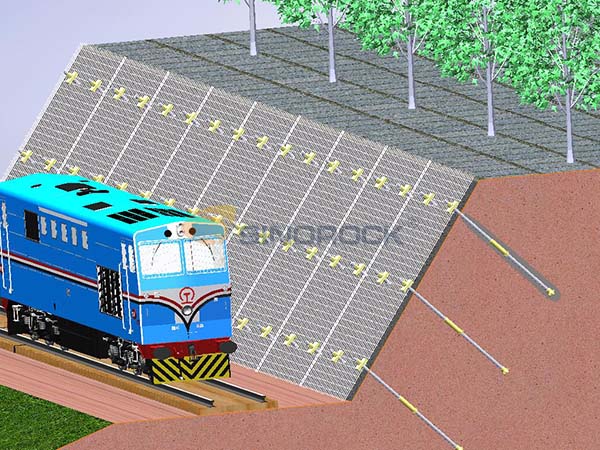

Methods for Stabilizing Railway Slopes

Self-drilling anchor bolts have emerged as a reliable and versatile solution for stabilizing collapsed railway slopes. A notable example is a 2021 project in Tuscany, Italy, where heavy rainfall caused a railway slope to collapse, necessitating urgent repairs. The self-drilling anchor bolt system was deployed to restore stability. Below are the detailed steps involved:

1. Slope Surface Preparation

The first step is to prepare the slope surface based on its condition. For slopes with limited loose material, manual clearing of debris, vegetation, and unstable rocks is sufficient to create a clean work area. On highly fragmented slopes with fine-grained soil, an initial layer of sprayed concrete (shotcrete) is applied to bind loose particles, preventing further slippage during construction. The initial concrete layer is typically 5-10 cm thick, adjusted based on design specifications.

2. Construction Equipment Setup

Railway slope construction sites are often constrained by narrow or steep terrain, making large machinery impractical. Scaffolding is erected to provide a stable platform for workers, and small-scale pneumatic drills are used for drilling. Before drilling, engineers mark rock bolt positions and alignments per the design plans, considering the geological characteristics of the slope to determine optimal hole depth and spacing.

3. Drilling and Debris Removal

The choice of debris removal method depends on the rock layer’s condition. For weak rock layers, air-based debris removal is preferred to maintain drill functionality and prevent jamming or burial. Water-based debris removal should be avoided on slopes prone to landslides, as water can exacerbate soil collapse and instability. Air pressure must be carefully monitored to ensure efficient drilling and minimize equipment damage.

4. Rock Bolt Grouting

Self-drilling anchor bolts can be installed using simultaneous drill-and-grout method. The simultaneous technique is often preferred as it enlarges the borehole diameter, allowing more grout to penetrate the soil, enhancing soil cohesion and corrosion resistance. Grout, typically a cement slurry, is formulated with a precise water-cement ratio tailored to site conditions. This process strengthens the bond between the grout, surrounding rock, and rock bolts, significantly improving the slope’s resistance to deformation.

5. Secondary Concrete Spraying

After grouting is complete, additional reinforcement measures are implemented per the design plan. If a steel mesh is required, it is installed only after the grout reaches 80% of its designed strength (typically after 7-14 days). The mesh is securely fastened to the rock bolts via welding or tying to ensure structural integrity. The slope surface is then cleared of debris using high-pressure air, followed by a second layer of sprayed concrete. This final layer, typically 15-25 cm thick, must be applied evenly, with a smooth surface free of slippage or runoff to ensure both functionality and aesthetics.

Advantages of Self-Drilling Anchor Bolts for Slope Stabilization

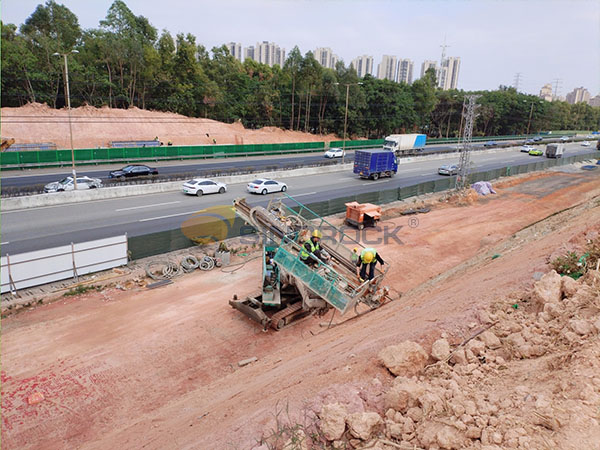

Self-Drilling Anchor Bolts for Slope Stabilization

Self-drilling anchor bolts offer a range of benefits that make them an ideal choice for addressing railway slope collapses. Below are the key advantages:

1. Efficient Construction in Challenging Terrains

Self-drilling anchor bolts integrate drilling, grouting, and anchoring into a single process, eliminating the need for multiple equipment changes and significantly reducing construction time. In the confined and steep environments typical of railway slopes, small-scale equipment can be used, enhancing adaptability and minimizing the logistical challenges of transporting and deploying heavy machinery.

2. Enhanced Slope Stability

The simultaneous drill-and-grout method allows cement slurry to penetrate deep into the slope, filling soil fissures and reinforcing the surrounding rock mass. The strong bond between the rock bolts and the soil effectively resists slope deformation, preventing secondary collapses and ensuring long-term stability.

3. Versatility Across Geological Conditions

Self-drilling anchor bolts are suitable for a wide range of geological environments, including weak rock layers, fractured rock masses, and highly permeable soils. Contractors can adjust drilling and grouting parameters—such as choosing air or water-based debris removal—based on site-specific rock characteristics, ensuring high-quality and safe construction outcomes.

4. Corrosion Resistance and Durability

Made from galvanized or epoxy, self-drilling anchor bolts are protected by a grout layer that prevents corrosion, extending their service life. The strong bond between the rock bolts and surrounding rock enhances structural durability, reducing the need for frequent maintenance and lowering long-term costs.

5. Cost-Effectiveness and Environmental Benefits

Compared to traditional slope stabilization methods, self-drilling anchor bolts streamline the construction process and require fewer materials, reducing overall project costs. The use of air-based debris removal minimizes environmental disturbance, aligning with sustainable construction practices and reducing the ecological footprint of the project.

Conclusion

Railway slope protection is a multifaceted discipline that demands meticulous planning, precise execution, and innovative technologies. By leveraging self-drilling anchor bolt systems, engineers can effectively mitigate collapse risks and ensure the longevity of railway infrastructure. This guide provides a thorough analysis of collapse causes, detailed stabilization methods, and the unique advantages of self-drilling anchor bolts, empowering professionals to advance railway safety standards. For further inquiries about self-drilling anchor bolts or slope stabilization, please feel free to contact our team for expert guidance.
