Hollow Anchor Bar vs. Mortar Anchor Rod: Key Differences and Selection

Time:2025-06-24From:sinorock View:

Anchor rods are critical components in construction and geotechnical engineering, providing stability to structures by transferring loads to the surrounding ground. Among the various types, hollow anchor bars and mortar anchor rods are widely used due to their versatility and effectiveness. This article explores the differences between hollow anchor bars and mortar anchor rods, covering their definitions, applications, structures, materials, performance, construction methods, costs, and how to choose the right one for your project.

1. Definitions

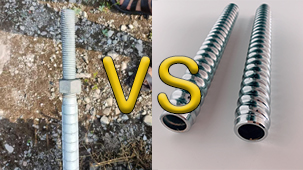

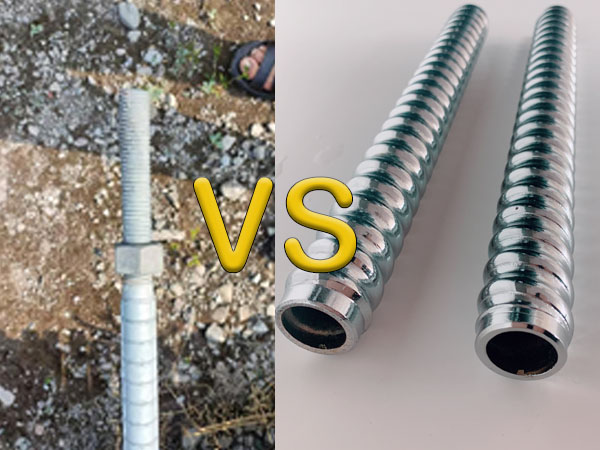

Hollow Anchor Bar vs. Mortar Anchor Rod

1.1 Hollow Anchor Bar

Hollow anchor bar is a specialized anchoring system with a hollow core, typically made of high-strength steel. Its design allows for simultaneous drilling, anchoring, and grouting, making it ideal for challenging geotechnical conditions such as loose or water-bearing formations. The hollow structure facilitates the injection of grout through the bar, enhancing bonding with the surrounding soil or rock.

1.2 Mortar Anchor Rod

Mortar anchor rod also known as a solid anchor rod, is a threaded steel rod embedded in a predrilled hole and secured with cementitious mortar or epoxy. These rods rely on the bond between the mortar and the surrounding material to transfer loads, commonly used in concrete and masonry applications to anchor structural elements like columns or equipment.

2. Key Differences Between the Two

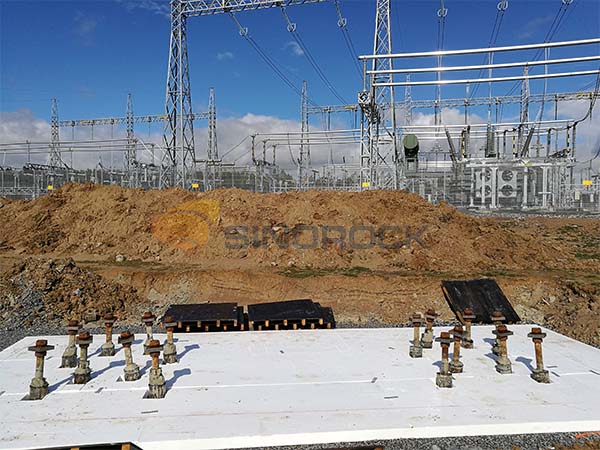

micropile

2.1 Applications

Hollow anchor bars are primarily used in geotechnical engineering, such as slope stabilization, tunneling, micropile foundations, and rock support in mining. Their ability to handle unstable or water-bearing ground makes them suitable for complex environments where traditional anchoring methods may fail.

Mortar anchor rods are more common in structural engineering, particularly for anchoring steel columns, base plates.

2.2 Structure

Hollow anchor bars feature a hollow core with a threaded or ribbed exterior, designed to improve grout adhesion. The hollow design allows grout to flow through the bar, creating a strong bond with the surrounding material. They often come with specialized thread types, such as R-thread (ISO10208 standard) or T-thread, which offer enhanced frictional resistance.

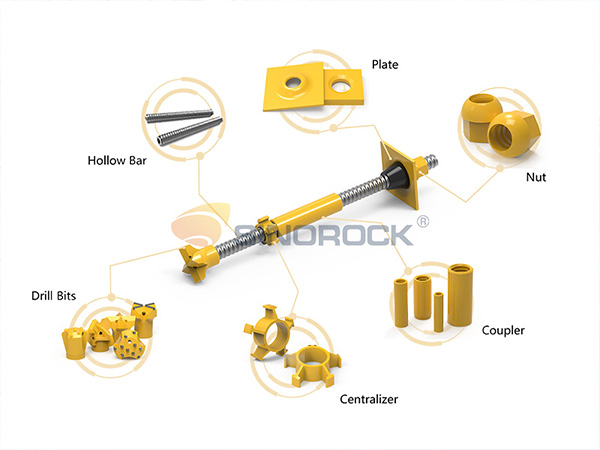

Structure

Mortar anchor rods are solid steel rods, typically threaded. They may include a nut, plate, or sleeve at the embedded end to enhance pullout resistance. The solid structure relies on the surrounding mortar to transfer loads to the concrete or masonry.

2.3 Materials

Hollow anchor bars are usually made from high-strength alloy steel or stainless steel, with corrosion-resistant coatings for harsh environments. The choice of material depends on the project’s environmental conditions, such as exposure to water or corrosive soils.

Mortar anchor rods are commonly made from carbon steel or high-strength steel. Stainless steel options are used in corrosive environments like wet wells or coastal structures. The mortar used is typically cement-based, though epoxy is an option for specific applications.

2.4 Performance

Hollow anchor bars offer superior performance in loose or unstable ground due to their ability to grout simultaneously during installation. The deep-threaded design (especially T-thread) provides high frictional resistance, with adhesive friction forces often double that of standard threads. They can achieve high load capacities, exceeding 1,000 kips in some cases, depending on the bar diameter and grout strength.

Mortar anchor rods are effective in stable conditions, with performance dependent on the bond between the mortar and the surrounding concrete or masonry. Their load capacity is influenced by the embedment depth, mortar strength, and anchor rod diameter. Failure modes include ductile steel failure, concrete breakout, or bond failure, with capacities typically lower than hollow anchor bars in challenging geotechnical conditions.

2.5 Construction Methods

Construction Methods

Hollow anchor bars are installed using a self-drilling method, where the bar acts as both a drill bit and an anchor. Grout is injected through the hollow core during drilling, filling the hole and bonding with the surrounding material. This method eliminates the need for casing in collapsing formations and reduces installation time.

Mortar anchor rods require a predrilled hole, into which the rod is inserted, followed by mortar injection. Templates or sleeves may be used to ensure alignment and prevent mortar leakage. The installation process is slower, as it involves separate drilling and grouting steps, and the mortar must reach adequate compressive strength before tensioning.

2.6 Price

Hollow anchor bars are generally more expensive due to their specialized design, high-strength materials, and complex manufacturing processes. Costs vary based on diameter, length, and thread type, with T-thread bars being pricier due to their enhanced performance.

Mortar anchor rods are typically more cost-effective, as they use simpler solid steel rods and standard mortar materials. However, costs can increase with high-strength or corrosion-resistant materials and additional components like plates or sleeves.

3. How to Choose

Choosing between hollow anchor bars and mortar anchor rods depends on several factors:

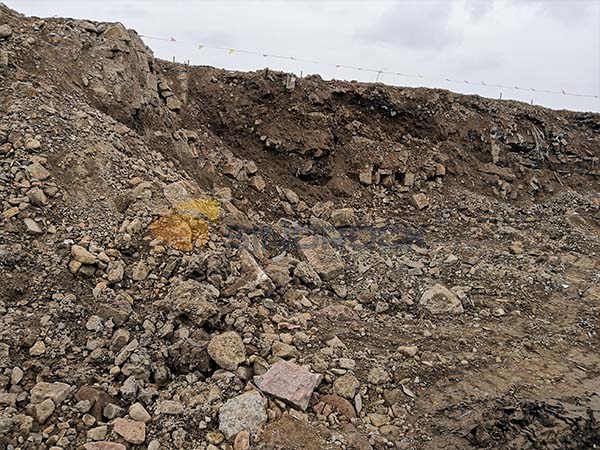

project requirements

• Project Requirements: Hollow anchor bars are ideal for geotechnical applications in unstable or water-bearing ground, while mortar anchor rods suit structural applications in stable concrete or masonry.

• Environmental Conditions: In corrosive environments, stainless steel or coated hollow anchor bars may be preferred. Mortar anchor rods with corrosion-resistant materials are suitable for wet or coastal structures.

• Load Capacity: Hollow anchor bars are better for high-load applications in challenging conditions, while mortar anchor rods suffice for moderate loads in stable settings.

• Installation Constraints: Hollow anchor bars offer faster installation in difficult ground, while mortar anchor rods require more time but are simpler for concrete applications.

• Budget: Mortar anchor rods are more budget-friendly for standard applications, but hollow anchor bars may be worth the investment for complex projects.

Consulting with Sinorock is crucial to ensure the selected anchor bar or rod meets the project’s load, environmental, and installation requirements.

4. Conclusion

Hollow anchor bars and mortar anchor rods serve distinct purposes in construction and geotechnical engineering. Hollow anchor bars excel in challenging geotechnical conditions, offering simultaneous drilling and grouting, high load capacities, and versatility in unstable ground. Mortar anchor rods are reliable for structural applications, providing cost-effective solutions for anchoring in stable concrete or masonry. By understanding their differences in application, structure, materials, performance, construction methods, and costs, engineers and contractors can make informed decisions to ensure structural stability and project success.
